ON-BOARD AIR COMPRESSOR CKMA12 12V ARB ***ΛΑΔΑΣ4Χ4***

ON-BOARD AIR COMPRESSOR CKMA12 12V ARB ***ΛΑΔΑΣ4Χ4***

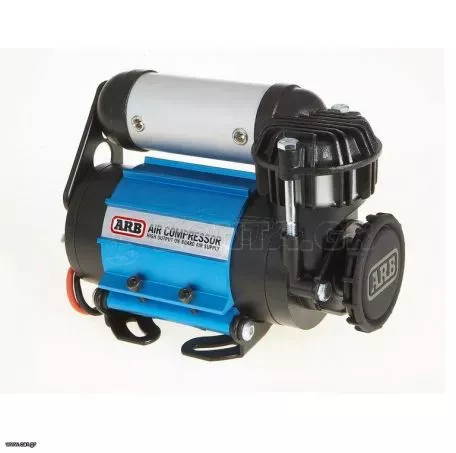

he high-performance CKMA12 ARB compressor can be used to activate the air locks and to pump wheels. Compressor engine has a new type of electronic protection against overheating that automatically shuts off the compressor. Compressor special handle enables the assembly to be rotated 180 degrees.

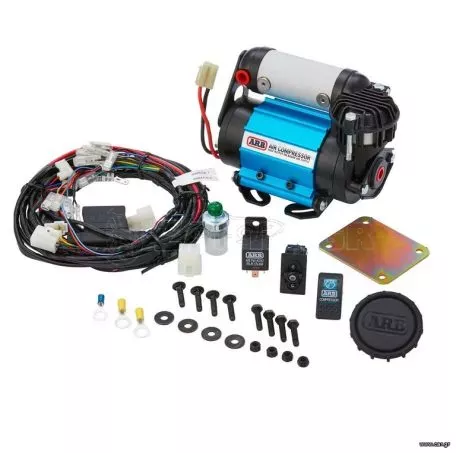

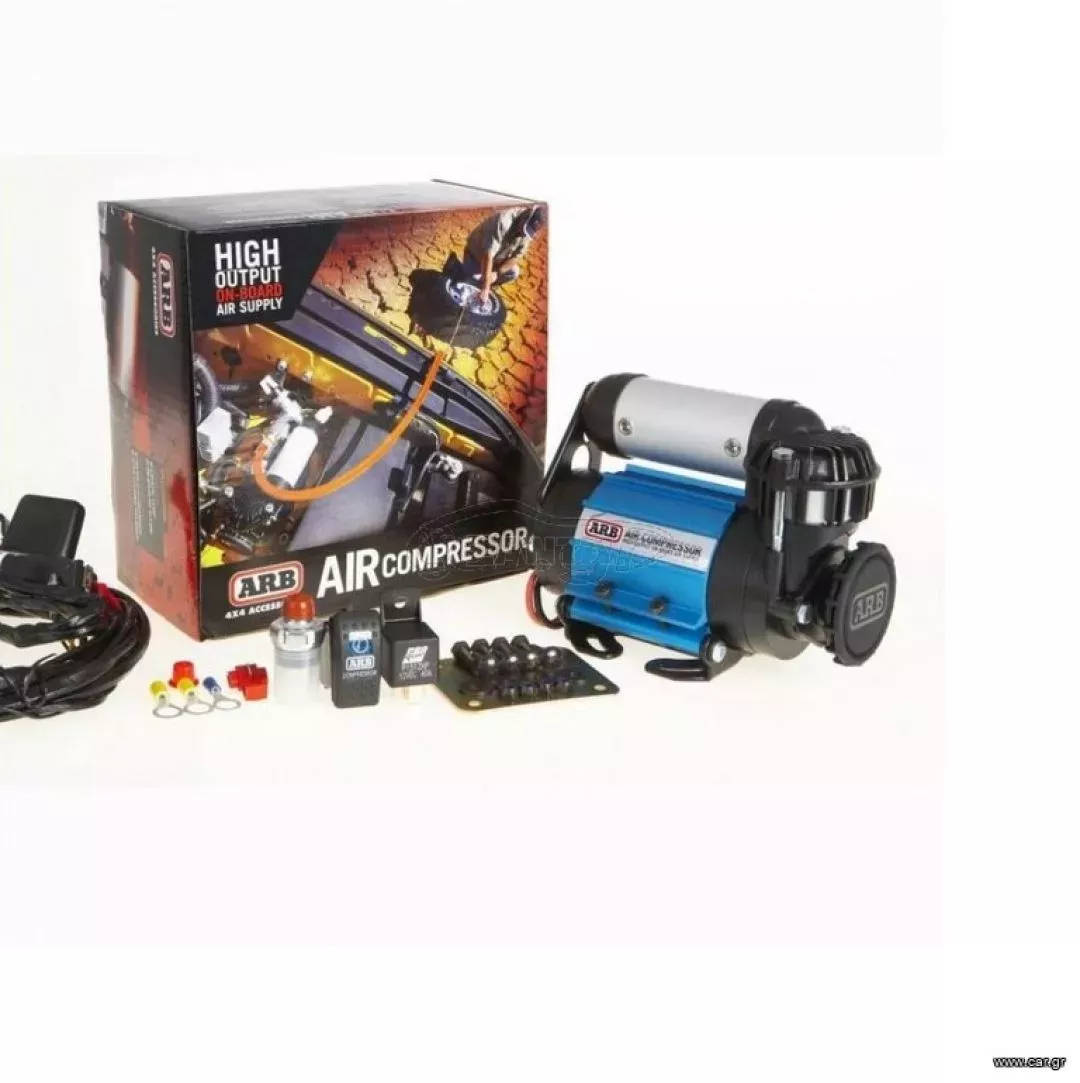

Kit includes: compressor, air filter, mounting bracket, pressure switch, electrical switch for cabin car and complete electrical harness for front and rear air lock.

Overload protection in harness: yes
Overhead protection of compressor engine: yes

Dimensions (H x L x W): 145 x 190 x 98 [mm]
Weight: 4.5 kg

Power supply: 12 V

Power consumption:
– no load: 14.2 A
– under load: 25.2 A

Efficiency:
– no load: 87.2 l / min.
– under load: (at 200kPa) 65.9 l / min.

Efficiency duty cycle: 50%
